Electronic weighning scale 1001

Weighing Systems: Continuous electronic weighing, Mechanical scales

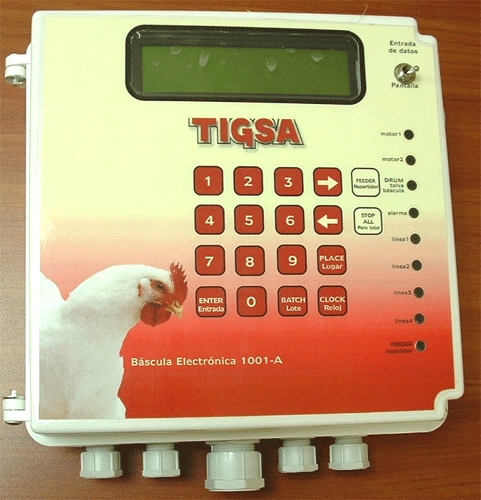

FeedTronic 1001-A is a highly flexible, powerful and accurate electronic feed weighing system especially designed for breeders and pullet raising where precise restrictive feed control is a must. Extremely flexible…

Share on social networks!

FeedTronic 1001-A is a highly flexible, powerful and accurate electronic feed weighing system especially designed for breeders and pullet raising where precise restrictive feed control is a must. Extremely flexible and easy to operate, it can be programmed to give different quantities of feed to each pan.  It can distribute different feed quantities for male and female chickens from two different silos to up to 15 different pans. An internal clock starts at a preset time and distributes the desired quantity to each pan. Using its on/off timer, it can operate the various feed lines up to 8 times per day.

The unit displays the total daily quantity of feed per pan, as well as the total flock feed consumption. In case of malfunction or an empty silo, the unit will stop the auger motor and activate the built-in alarm relay. Its internal calibration program displays all the information that can be changed through the keyboard.

FeedTronic 1001-A comes in two varieties, program for up to 5 pans or program for up to 15 pans

Technical Specifications:

  • Power: 220V, 50/60Hz
  • Batch per weighing: 5 Kg – 20 Kg
  • Restrictive Feeding: 5 Kg – 9999 Kg
  • Capacity per hour: 3600 Kg
  • Accuracy: 0.5%
  • Load Cell: 70Kg
  • System Weight: 12 Kg
  • In & Output: Serial RS 422
  • Display: Alpha numeric 2 x 16
